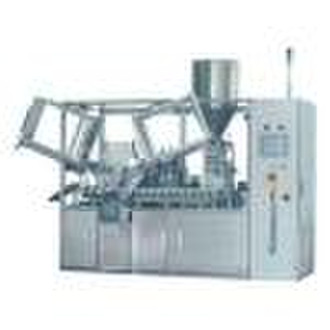

TFM-2 Automatic Tube Filling and Sealing Machine

Introductions: Automatic tube filling and sealing machine is mainly used to filling ointment or viscous fluid materials into aluminum tubes, plastic tubes or composite tubes. Then it seals the tubes tail, and the machine adopts a new type dosing pump with stainless steel butterfly valve which matches with screw tiny adjustment outfit. It can measure exactitude also in compliance with the standard of GMP requirement. It adopts PLC programmable control as well as photoelectricity identify outfit, orientation accurately and reliably, change frequency to control the machine speed. It uses Fukaishen index drives and international advanced tube sealing systems.Parameters: Tube material aluminum per plastic and composite tube Tube seat quantity: 40 sites Tube diameter 11 - 50mm Sealing systems: machine tuck per hot air Dosing range: 2 - 300ml Speed: 120 - 160 tubes/min Motor power: 2.3kW Control speed mode frequency modulation Dimensions (L x W x H): 2,950 x 1,310 x 2,300mm Weight: 3,000kg Packing: wooden case
